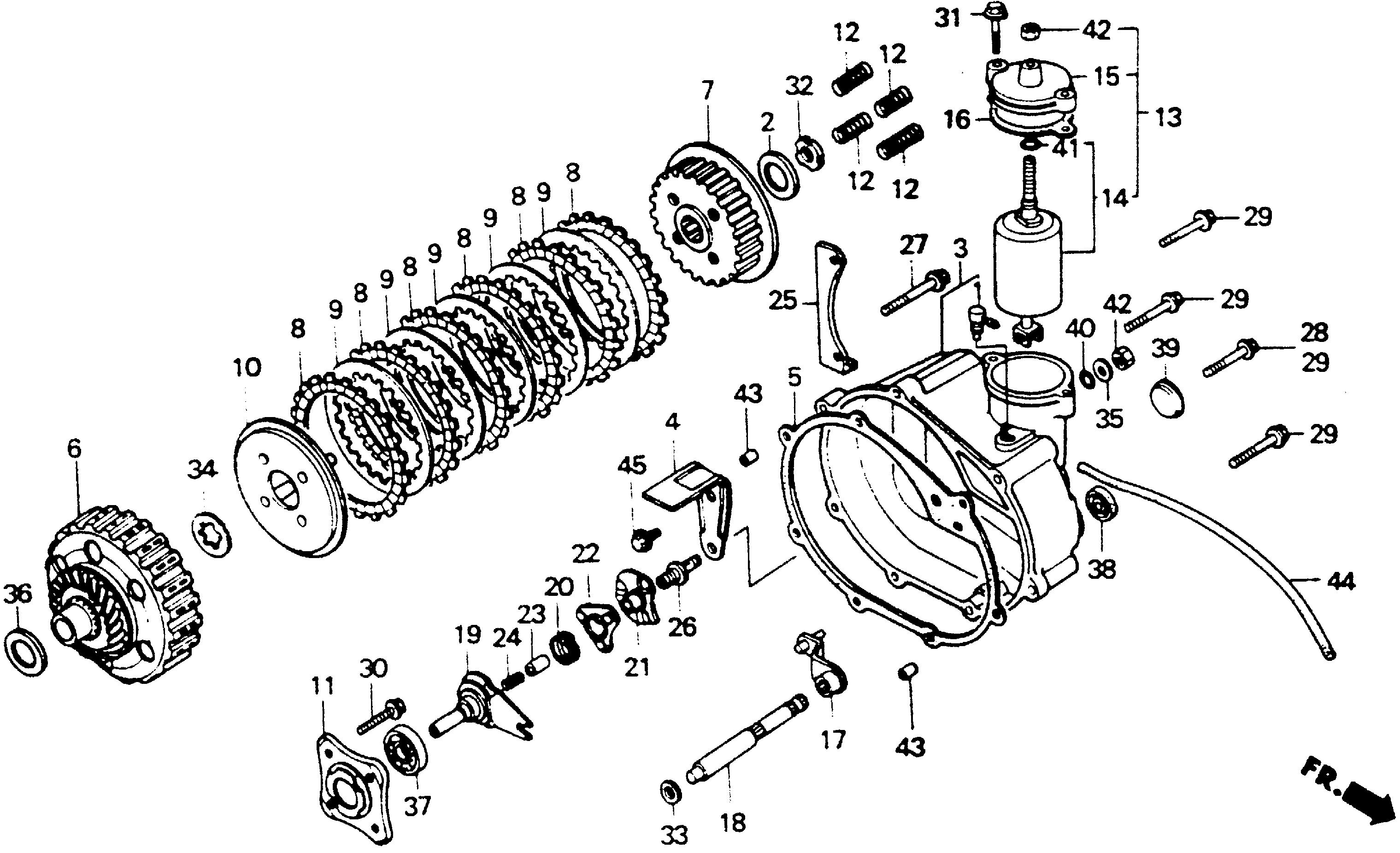

Riding Mower HT-R HT-R3009 HT-R3009K1 SA MA1T-5100001-9999999 CLUTCH - Heyser Cycle

  1. Product Lines
  2. Riding Mower
  3. HT-R
  4. HT-R3009
  5. HT-R3009K1 SA MA1T-5100001-9999999
  6. CLUTCH

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 11106-GM2-300
Description
 JOINT, BREATHER
Serial Range
 1000001 - 9999999
Qty
Price
 $8.22
Ref No
2
Part Number
 15451-107-000
Description
 WASHER, OIL FILTER ROTOR LOCKING
Serial Range
 1000001 - 9999999
Qty
Price
 $5.32
Ref No
3
Part Number
 213A1-751-000
Description
 COVER, CLUTCH (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
4
Part Number
 21314-751-000
Description
 GUIDE, OIL (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
5
Part Number
 21123-763-A40
Description
 GASKET, CLUTCH COVER
Serial Range
 1000001 - 9999999
Ref No
6
Part Number
 22100-751-003
Description
 CLUTCH (OUTER) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
7
Part Number
 22121-KCS-650
Description
 CENTER, CLUTCH
Serial Range
 1000001 - 9999999
Qty
Price
 $46.12
Ref No
8
Part Number
 22201-751-003
Description
 DISK, CLUTCH FRICTION (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
9
Part Number
 22311-KN4-680
Description
 PLATE, CLUTCH
Serial Range
 1000001 - 9999999
Ref No
10
Part Number
 22350-751-013
Description
 PLATE, CLUTCH PRESSURE
Serial Range
 1000001 - 9999999
Ref No
11
Part Number
 22361-437-000
Description
 PLATE, CLUTCH LIFTER
Serial Range
 1000001 - 9999999
Qty
Price
 $18.90
Ref No
12
Part Number
 22401-751-701
Description
 SPRING, CLUTCH
Serial Range
 1000001 - 9999999
Qty
Price
 $4.48
Ref No
13
Part Number
 22700-751-013
Description
 DAMPER SET, CLUTCH (N/A: SEE COMPONENTS)
Serial Range
 1000001 - 9999999
Ref No
14
Part Number
 22710-751-013
Description
 DAMPER ASSY., CLUTCH
Serial Range
 1000001 - 9999999
Qty
Price
 $92.62
Ref No
15
Part Number
 22711-751-000
Description
 BRACKET, DAMPER (UPPER) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
16
Part Number
 22715-751-010
Description
 GASKET, CLUTCH DAMPER
Serial Range
 1000001 - 9999999
Ref No
17
Part Number
 22811-751-000
Description
 LEVER, CLUTCH (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
18
Part Number
 22814-751-000
Description
 SHAFT, CLUTCH (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
19
Part Number
 22820-751-700
Description
 PLATE, CLUTCH CAM (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
20
Part Number
 22825-046-000
Description
 SPRING, CAM PLATE SIDE
Serial Range
 1000001 - 9999999
Qty
Price
 $2.62
Ref No
21
Part Number
 22830-957-670
Description
 PLATE, CLUTCH LIFTER (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
22
Part Number
 22860-046-000
Description
 RETAINER, BALL
Serial Range
 1000001 - 9999999
Qty
Price
 $9.30
Ref No
23
Part Number
 25551-918-007
Description
 THROUGH, OIL
Serial Range
 1000001 - 9999999
Ref No
23
Part Number
 25551-GEL-A80
Description
 THROUGH, OIL
Serial Range
 1000001 - 9999999
Qty
Price
 $7.96
Ref No
24
Part Number
 25555-065-000
Description
 SPRING, OIL THROUGH
Serial Range
 1000001 - 9999999
Qty
Price
 $2.04
Ref No
25
Part Number
 50135-751-700
Description
 STAY C, TRANSMISSION (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
26
Part Number
 50673-751-000
Description
 BOLT, CLUTCH ADJUSTING
Serial Range
 1000001 - 9999999
Ref No
27
Part Number
 90018-ZG0-000
Description
 BOLT, FLANGE (6X42)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.80
Ref No
28
Part Number
 90014-ZE6-000
Description
 BOLT, FLANGE (6X35) (CT200)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.48
Ref No
29
Part Number
 90031-ZE1-000
Description
 BOLT, FLANGE (6X32) (CT200)
Serial Range
 1000001 - 9999999
Qty
Price
 $3.46
Ref No
30
Part Number
 90050-751-000
Description
 BOLT, SPECIAL FLANGE (6X28)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.66
Ref No
31
Part Number
 90121-952-000
Description
 BOLT, FLANGE (6X25) (CT200)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.70
Ref No
32
Part Number
 90231-KCS-651
Description
 NUT, LOCK (16MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.56
Ref No
33
Part Number
 90412-329-000
Description
 WASHER, THRUST (10MM)
Serial Range
 1000001 - 9999999
Ref No
33
Part Number
 90412-KZL-840
Description
 WASHER, THRUST (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.99
Ref No
34
Part Number
 90461-751-700
Description
 WASHER, SPLINE (20MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
35
Part Number
 90485-GB4-790
Description
 WASHER (8MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.60
Ref No
36
Part Number
 90540-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.25) (A)
Serial Range
 1000001 - 9999999
Qty
Price
 $8.18
Ref No
36
Part Number
 90541-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.30) (B)
Serial Range
 1000001 - 9999999
Qty
Price
 $7.46
Ref No
36
Part Number
 90542-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.35) (C) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90543-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.40) (D) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90544-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.45) (E) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90545-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.50) (F) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90546-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.55) (G) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90547-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.60) (H) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90548-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.65) (I) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90549-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.70) (J) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
36
Part Number
 90550-751-000
Description
 SHIM, MAINSHAFT (20.2X30X1.75) (K) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
37
Part Number
 91010-HC0-003
Description
 BEARING, RADIAL BALL (16003)
Serial Range
 1000001 - 9999999
Ref No
37
Part Number
 91011-KK6-013
Description
 BEARING, RADIAL BALL (16003)
Serial Range
 1000001 - 9999999
Qty
Price
 $19.64
Ref No
38
Part Number
 91201-VA4-801
Description
 OIL SEAL (10X20X5)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.04
Ref No
39
Part Number
 91255-751-003
Description
 SEAL, PLUG (25X7)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.38
Ref No
40
Part Number
 91306-HB3-003
Description
 O-RING (8X1.7) (ARAI)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.28
Ref No
41
Part Number
 91306-PJ4-000
Description
 O-RING (6.8X1.9)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.34
Ref No
42
Part Number
 94030-08000
Description
 NUT, HEX. (8MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.28
Ref No
43
Part Number
 94301-08140
Description
 PIN, DOWEL (8X14)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.70
Ref No
44
Part Number
 95005-50003-30M
Description
 BULK HOSE, VACUUM (5X3000) (5X200)
Serial Range
 1000001 - 9999999
Qty
Price
 $29.00
Ref No
45
Part Number
 95701-06012-00
Description
 BOLT, FLANGE (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.96
